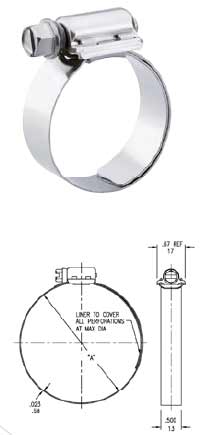

An integral extension of the band as an inner liner protects soft-surface hose (silicone and others) from damage caused by extrusion or shearing through the band slots. Liner clamps afford maximum protection to soft hoses while providing a true concentric seal.
|
 |
|
Standard 1/2” (12.7mm) band
5/16” (7.9mm) slotted hex head screw
Per SAE standard J1508 Type “F”
|
 |
|
CALL FOR PRICING
| 6 |
7/16 |
11 |
25/32 |
20 |
9206 |
9406 |
| 8 |
1/2 |
13 |
29/32 |
23 |
9208 |
9408 |
| 10 |
9/16 |
14 |
1-1/16 |
27 |
9210 |
9410 |
| 12 |
11/16 |
17 |
1-1/4 |
32 |
9212 |
9412 |
| 16 |
13/16 |
21 |
1-1/2 |
38 |
9216 |
9416 |
| 20 |
13/16 |
21 |
1-3/4 |
44 |
9220 |
9520 |
| 24 |
1-1/16 |
27 |
2 |
51 |
9224 |
9424 |
| 28 |
1-5/16 |
33 |
2-1/4 |
57 |
9228 |
9428 |
| 32 |
1-9/16 |
40 |
2-1/2 |
64 |
9232 |
9432 |
| 36 |
1-13/16 |
46 |
2-3/4 |
70 |
9236 |
9436 |
| 40 |
2-1/16 |
52 |
3 |
76 |
9240 |
9440 |
| 44 |
2-5/16 |
59 |
3-1/4 |
83 |
9244 |
9444 |
| 48 |
2-9/16 |
65 |
3-1/2 |
89 |
9248 |
9448 |
| 52 |
2-13/16 |
71 |
3-3/4 |
95 |
9252 |
9452 |
| 56 |
3-1/16 |
78 |
4 |
102 |
9256 |
9456 |
| 60 |
3-5/16 |
84 |
4-1/4 |
108 |
9260 |
9460 |
| 64 |
3-9/16 |
91 |
4-1/2 |
114 |
9264 |
9464 |
| 72 |
1-7/8 |
48 |
5 |
127 |
9272 |
9472 |
| 80 |
2-1/2 |
64 |
5-1/2 |
140 |
9280 |
9480 |
| 88 |
3-1/8 |
79 |
6 |
152 |
9288 |
9488 |
| 96 |
3-5/8 |
92 |
6-1/2 |
165 |
9296 |
9496 |
| 104 |
4-1/8 |
105 |
7 |
178 |
92104 |
94104 |
|
 |
| Note: Size 88, 96 & 104 will be supplied with a 9/16" (14.2 mm) band |
