NORMACLAMP® TORRO®
Worm-Gear Hose Clamps
to DIN 3017

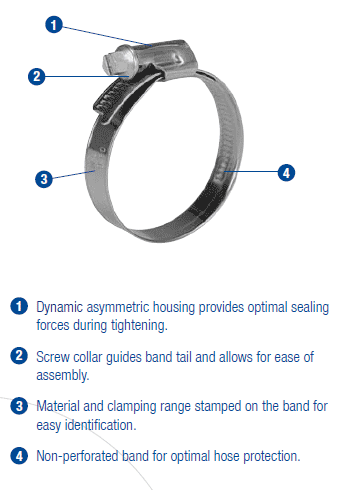

NORMACLAMP® TORRO® is the most widely produced and accepted embossed band worm-gear clamp available in the world. The TORRO has set the standard for modern hose clamp design and is specially suited for applications under high mechanical load.
|
 |
|
Features 9mm (3/8") band
Available with 12mm (1/2") band on special order
Per SAE standard J1508 Type "FEO"
Applications
- Coolant lines
- Fuel lines and vent lines
- Oil lines
- Water treatment and sewage
- Connections in engine design
- Connections in the appliance industry
- Hose connections in automotive and commercial vehicles
CALL FOR PRICING
|
|
| 1 |
5/16 - 1/2 |
8-12 |
1266702010 |
20 |
| 2 |
5/16 - 5/8 |
8-16 |
1266702013 |
" |
| 4 |
1/2 - 3/4 |
12-20 |
1266702016 |
20 - 25 |
| 8 |
5/8 - 1 1/16 |
16-27 |
1266702021 |
" |
| 12 |
3/4 - 1 1/4 |
20-32 |
1266702026 |
" |
| 18 |
1 - 1 5/8 |
25-40 |
1266702032 |
" |
| 24 |
1 1/4 - 2 |
32-50 |
1266702041 |
" |
| 30 |
1 5/8 - 2 3/8 |
40-60 |
1266702050 |
20 - 30 |
| 36 |
2 - 2 3/4 |
50-70 |
1266702060 |
" |
| 42 |
2 3/8 - 3 1/8 |
60-80 |
1266702070 |
" |
| 48 |
2 3/4 - 3 1/2 |
70-90 |
1266702080 |
" |
| 56 |
3 1/8 - 4 |
80-100 |
1266702090 |
" |
| 62 |
3 1/2 - 4 3/8 |
90-110 |
1266702100 |
" |
| 68 |
4 - 4 3/4 |
100-120 |
1266702110 |
" |
| 74 |
4 3/8 - 5 1/8 |
110-130 |
1266702120 |
" |
| 80 |
4 3/4 - 5 1/2 |
120-140 |
1266702130 |
" |
| 86 |
5 1/8 - 5 7/8 |
130-150 |
1266702140 |
" |
| 92 |
5 1/2 - 6 1/4 |
140-160 |
1266702150 |
" |
12 mm (1/2") bandwidth available as special order
|
| 1 |
- |
- |
Use SAE 2 |
- |
| 2 |
5/16 - 5/8 |
8-16 |
1266704013 |
20 |
| 4 |
1/2 - 3/4 |
12-20 |
1266704016 |
20 - 25 |
| 8 |
5/8 - 1 1/16 |
16-27 |
1266704021 |
" |
| 12 |
3/4 - 1 1/4 |
20-32 |
1266704026 |
" |
| 18 |
1 - 1 5/8 |
25-40 |
1266704032 |
" |
| 24 |
1 1/4 - 2 |
32-50 |
1266704041 |
" |
| 30 |
1 5/8 - 2 3/8 |
40-60 |
1266704050 |
20 - 30 |
| 36 |
2 - 2 3/4 |
50-70 |
1266704060 |
" |
| 42 |
2 3/8 - 3 1/8 |
60-80 |
1266704070 |
" |
| 48 |
2 3/4 - 3 1/2 |
70-90 |
1266704080 |
" |
| 56 |
3 1/8 - 4 |
80-100 |
1266704090 |
" |
| 62 |
3 1/2 - 4 3/8 |
90-110 |
1266704100 |
" |
| 68 |
4 - 4 3/4 |
100-120 |
1266704110 |
" |
| 74 |
4 3/8 - 5 1/8 |
110-130 |
1266704120 |
" |
| 80 |
4 3/4 - 5 1/2 |
120-140 |
1266704130 |
" |
| 86 |
5 1/8 - 5 7/8 |
130-150 |
1266704140 |
" |
| 92 |
5 1/2 - 6 1/4 |
140-160 |
1266704150 |
" |
12 mm (1/2") bandwidth available as special order
|
